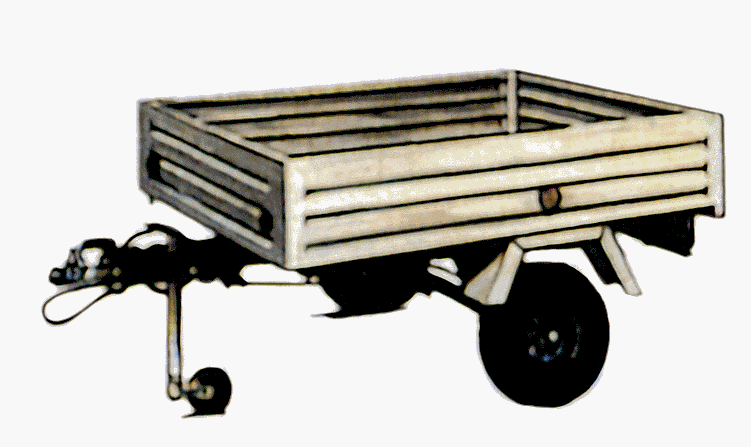

Accessories for trailers | |||||
 |

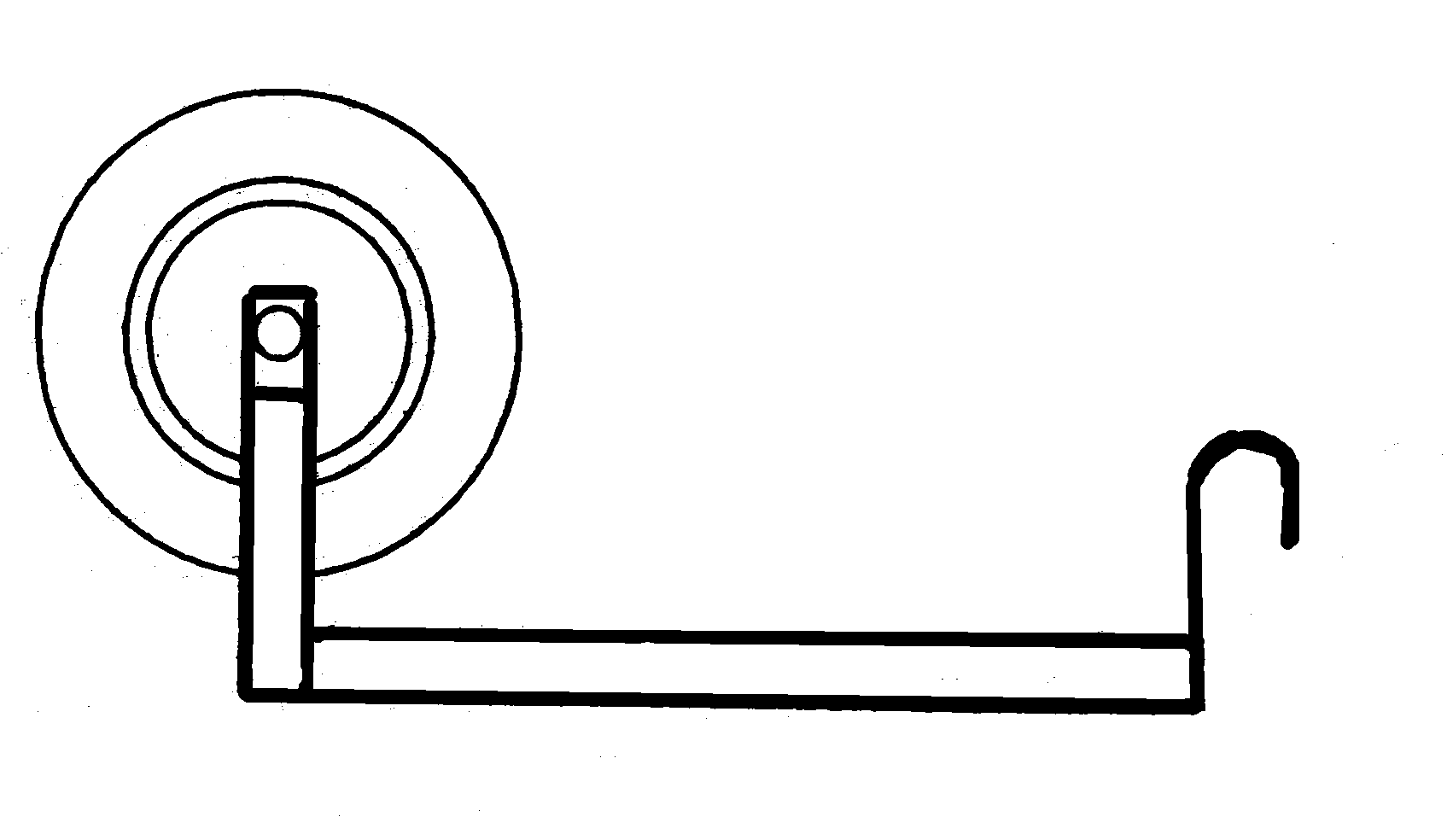

Support wheel for fixed trailer | |||||
| S.GR35.F | Support wheel fixed trailer pipe Æ 35 | |||||
 |
Support wheel for adjustable trailer | |||||
| S.GR35 | Support wheel adjustable trailer pipe Æ 35 | |||||
| S.GR48 | Support wheel adjustable trailer pipe Æ 48 | |||||
 |

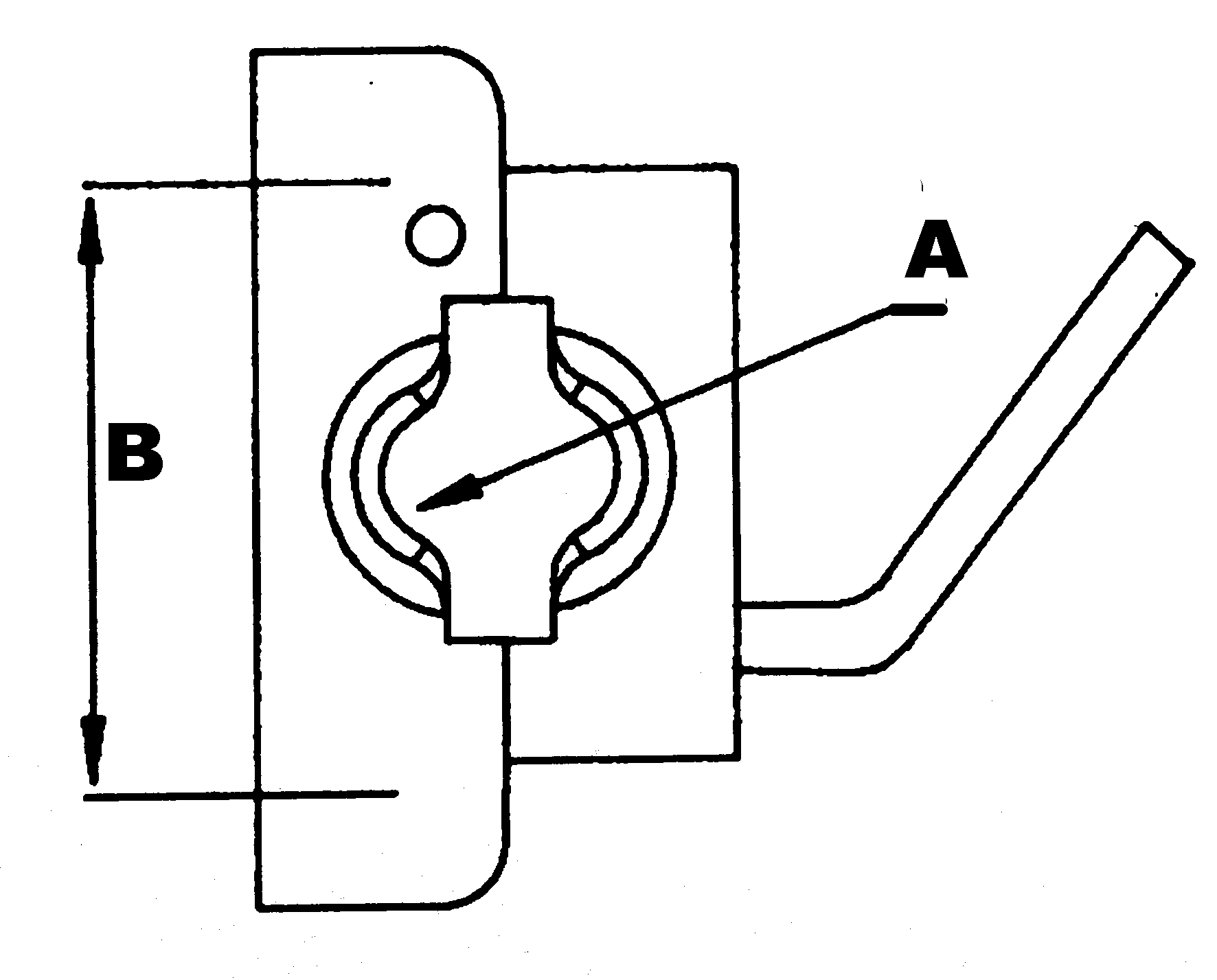

Wheel
block clamp
A = place for wheel Æ see type B = with 2 fixing holes Æ 11 wheelbase mm. 106 |
|||||
| S.GM35 | Clamp for wheelÆ 35 | |||||
| S.GM48 | Clamp for wheel Æ 48 | |||||
| Universal
trailer hook
Complete with toothed washer and nut |
||||||
 |
 |

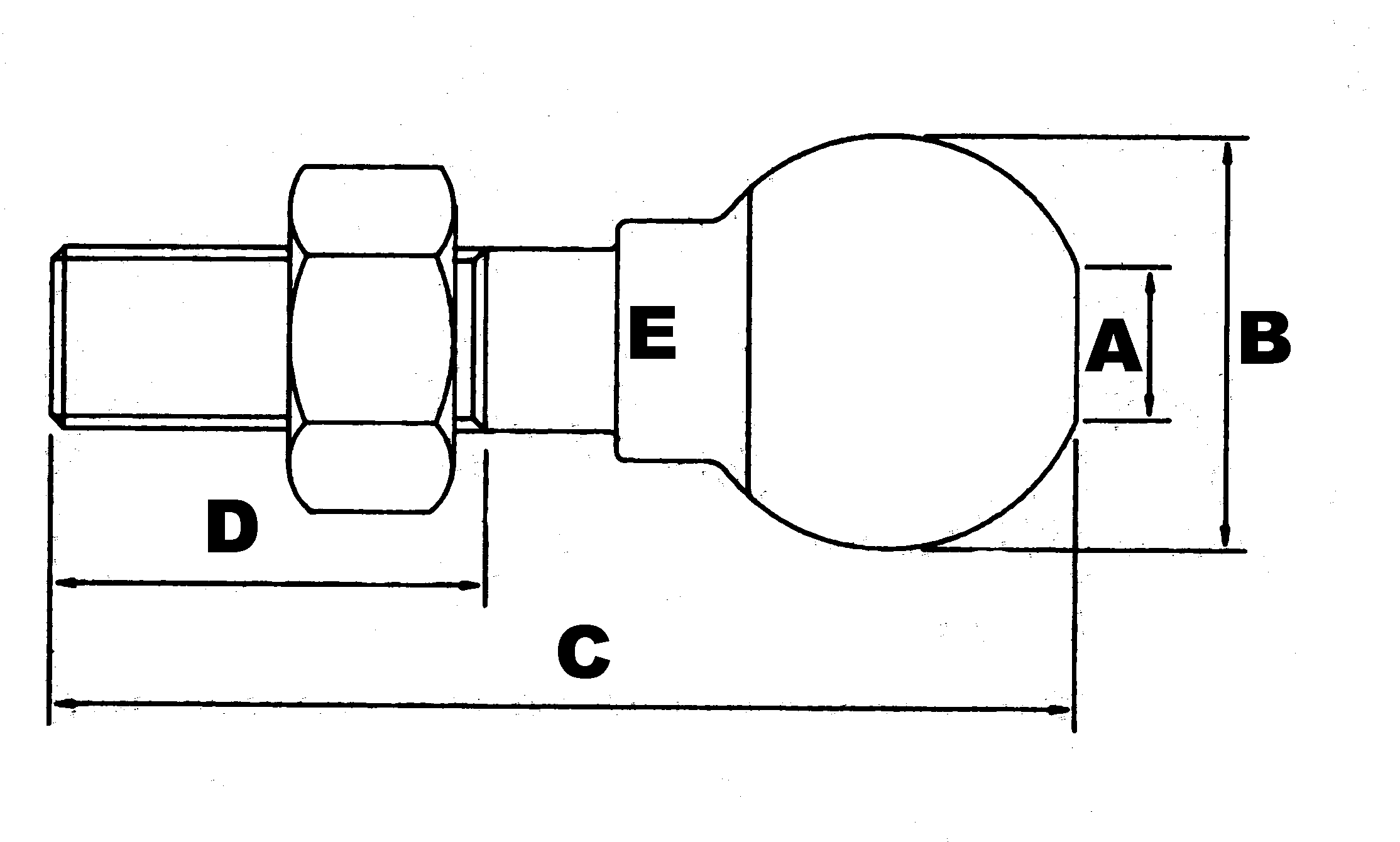

measurements
A = Æ 18 B = Æ 50 C = mm. 125 D = mm. 55 E = mm. 28 |
||||
| S.AS | Complete trailer hook | |||||
 |

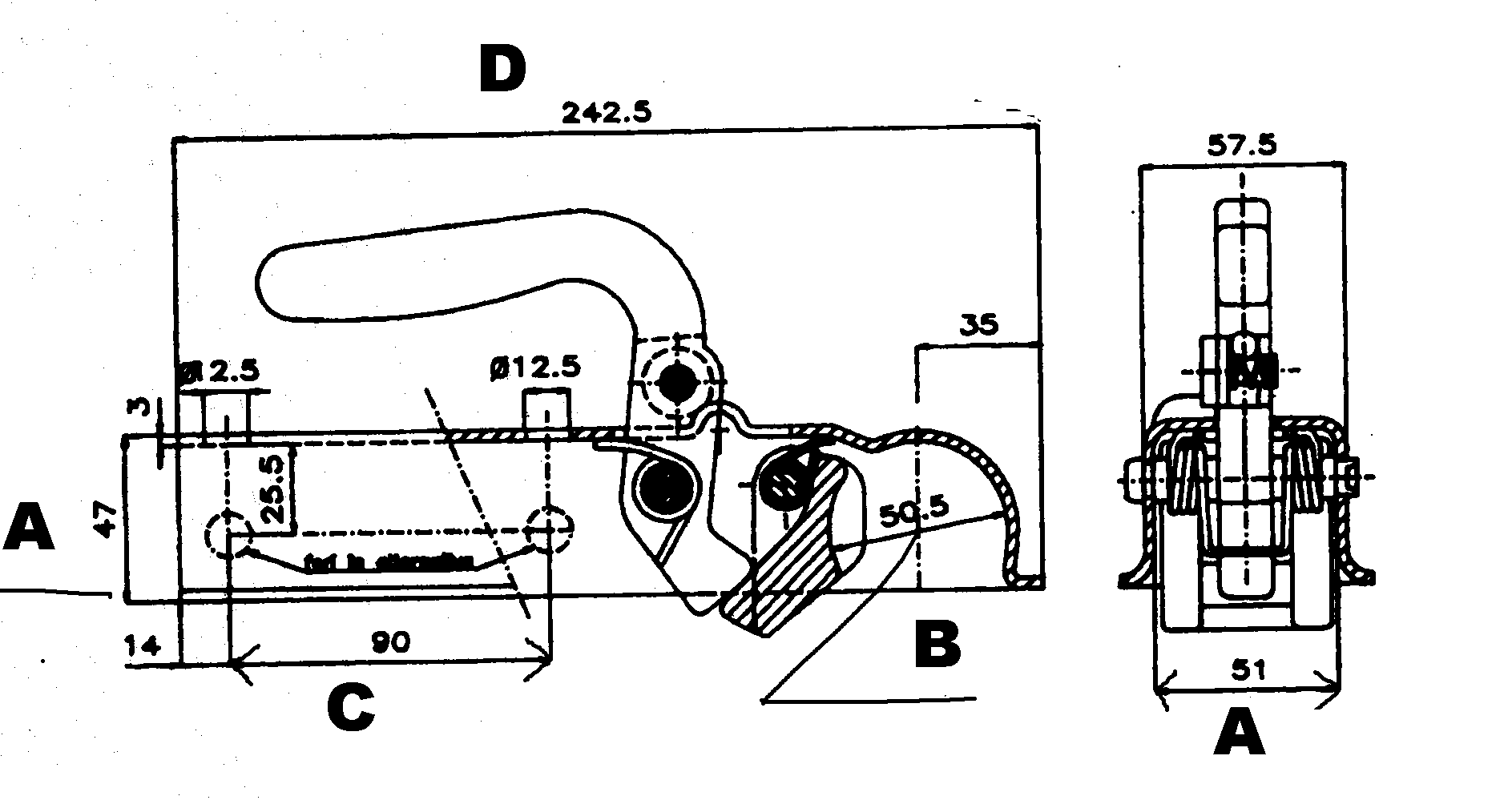

Important
points for use
A = attachment to appendage B = trailer hook C = fixing holes and wheelbases mm. see type D = total length |
|||||
 |
points
A =Æ 35 B =Æ 50 C = Æ 10 Wheelbases mm. 57 D = 220 |
Trailer hook with round attachment Æ 35 Produced according to approved standards |
||||
| S.GS.T35 | Trailer hook with round attachment Æ 35 | |||||
 |
points
A = Æ 50 B =Æ 50 C = Æ 12 wheelbases mm. 50 D = 210 |
Trailer hook with round attachment Æ 50 Produced according to approved standards |
||||
| S.GS.T50 | Trailer hook with round attachment Æ 50 | |||||
 |
points
A =  50 B =Æ 50 C = Æ 12 wheelbases mm. 90 D = 244 |
Trailer
hook with attachment 
50
Produced according to approved standards |
||||
| S.GS.Q50 | Ball trailer hook with square attachment  50 | |||||
|
|
points
A =  60 B =Æ 50 C = Æ 12 wheelbases mm. 90 D = 253 |
Trailer
hook with attachment 
60
Produced according to approved standards |
||||
