SHELVING Pigeonholes – chests of drawers and plastic containers – small parts and tool cupboards shelving with box sides – shelves with floor to ceiling supports |
|||||||||||||||||||||||||||||
Code nos. |
Description |
||||||||||||||||||||||||||||
|

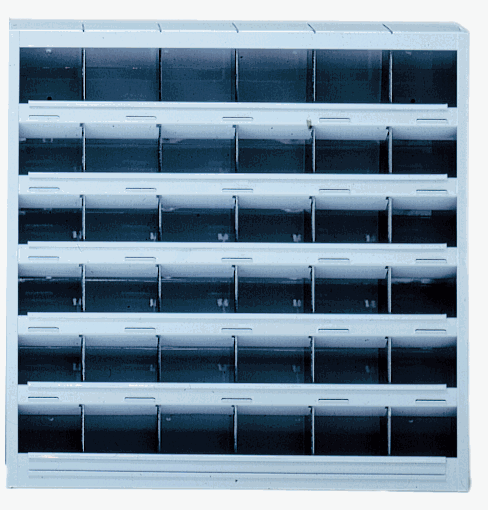

36 pigeonhole shelf unit Measurements in mm. 600 x 120 x 600 h |
||||||||||||||||||||||||||||
S1501 |
36 pigeonhole shelf set |
||||||||||||||||||||||||||||
|

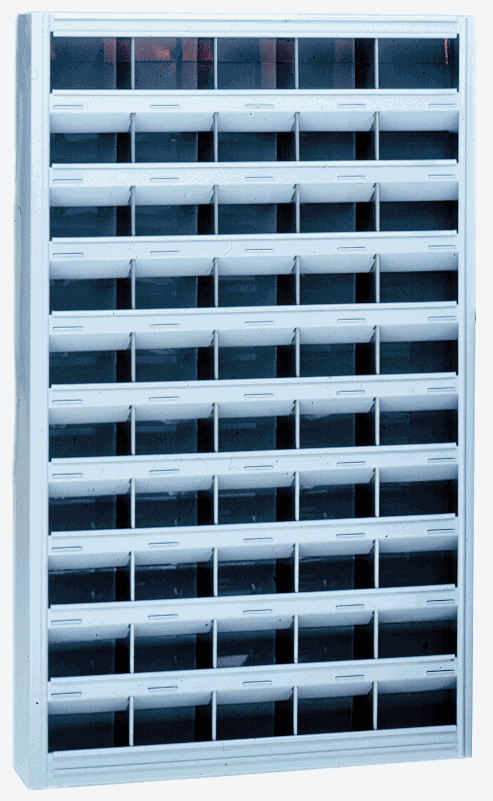

50 pigeonhole shelf unit Measurements in 600 x 120 x 1000 h |
||||||||||||||||||||||||||||
S1504 |
50 pigeonhole shelf set |
||||||||||||||||||||||||||||
|
60 pigeonhole shelf unit Measurements in mm. 600 x 150 x 2000 h |
||||||||||||||||||||||||||||
S1507 |
60 pigeonhole shelf set |
||||||||||||||||||||||||||||
|

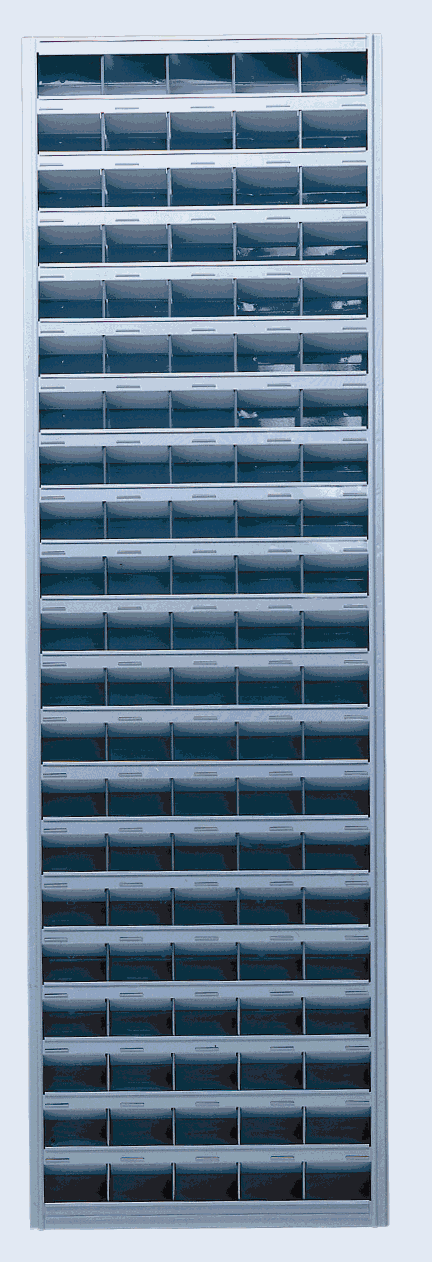

105 pigeonhole shelf unit Measurements in mm. 600 x 120 x 2000 h |
||||||||||||||||||||||||||||
S1509 |
105 pigeonhole shelf set |
||||||||||||||||||||||||||||
|

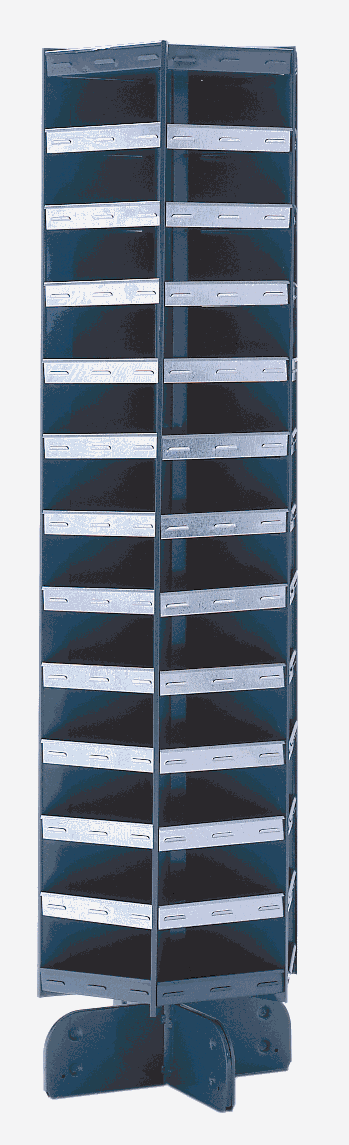

Revolving hexagonal shelf unit with 78 pigeonholes Measurements in mm. Æ 520 x 1850 h |
||||||||||||||||||||||||||||
S1515 |
Revolving shelf with 78 pigeonholes |
||||||||||||||||||||||||||||
|

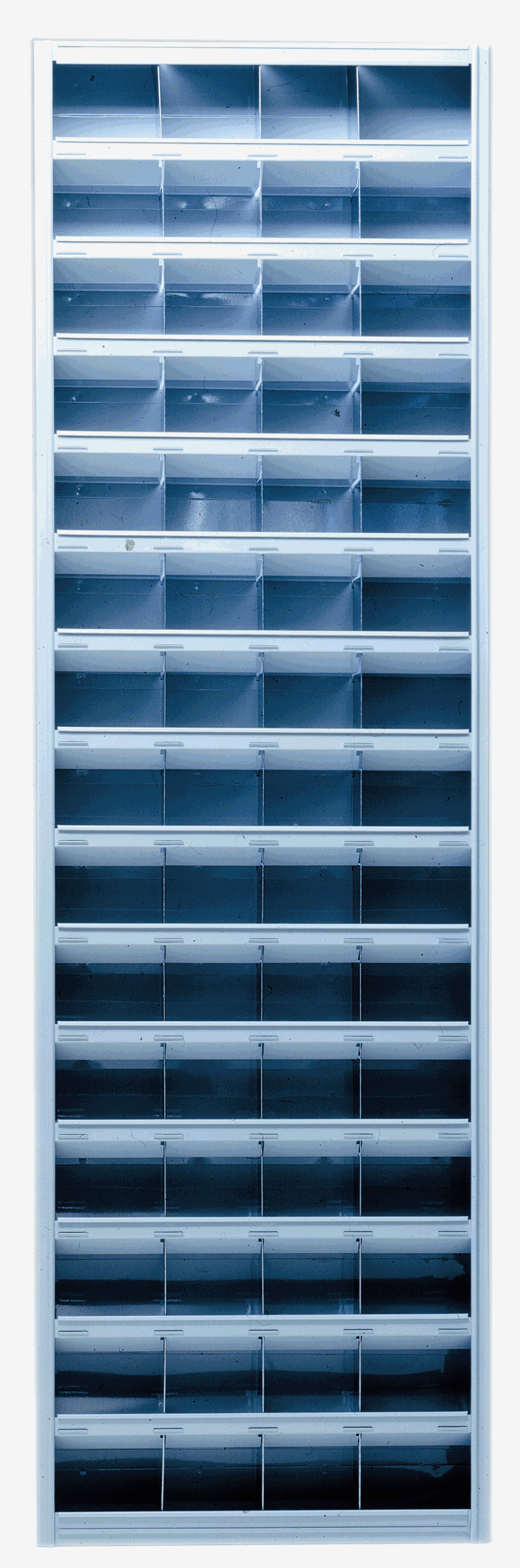

Shelf unit for bearings Measurements in mm. 600 X 200 X 2000 h Available Cod. S1525 pcs. 13 adjustable and slot in shelves Cod. S1526.CP pcs. 28 separators with sliding card holders. |
||||||||||||||||||||||||||||
S1521.CP |
Complete bearings shelf unit |
||||||||||||||||||||||||||||
|
Shelf for bearings shelf unit Measurements in mm. 600 x 200 P |
||||||||||||||||||||||||||||
S1525 |
Shelf for bearings shelf unit |
||||||||||||||||||||||||||||
|

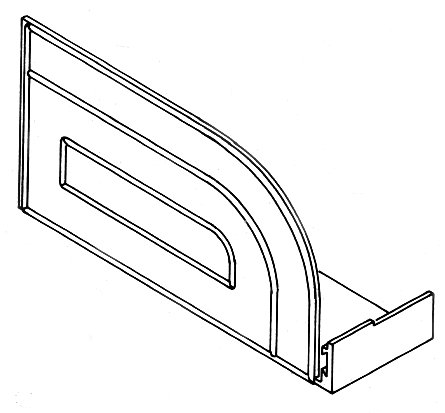

Sliding plastic separator for bearings shelf units Measurements in mm. 200 x 100 h |
||||||||||||||||||||||||||||
S1526 |
Sliding separator for bearings shelf units |
||||||||||||||||||||||||||||
|

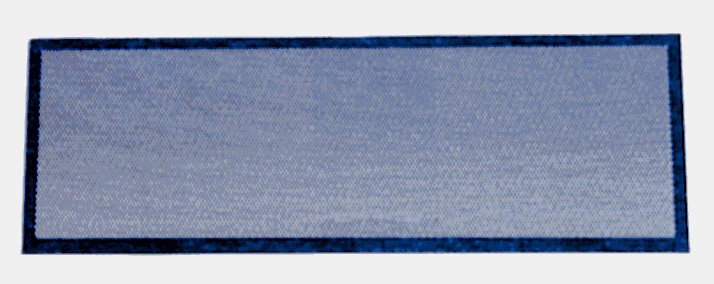

Sliding card holder for universal separators |
||||||||||||||||||||||||||||
S1180 |
Card holder for separators |
||||||||||||||||||||||||||||
|

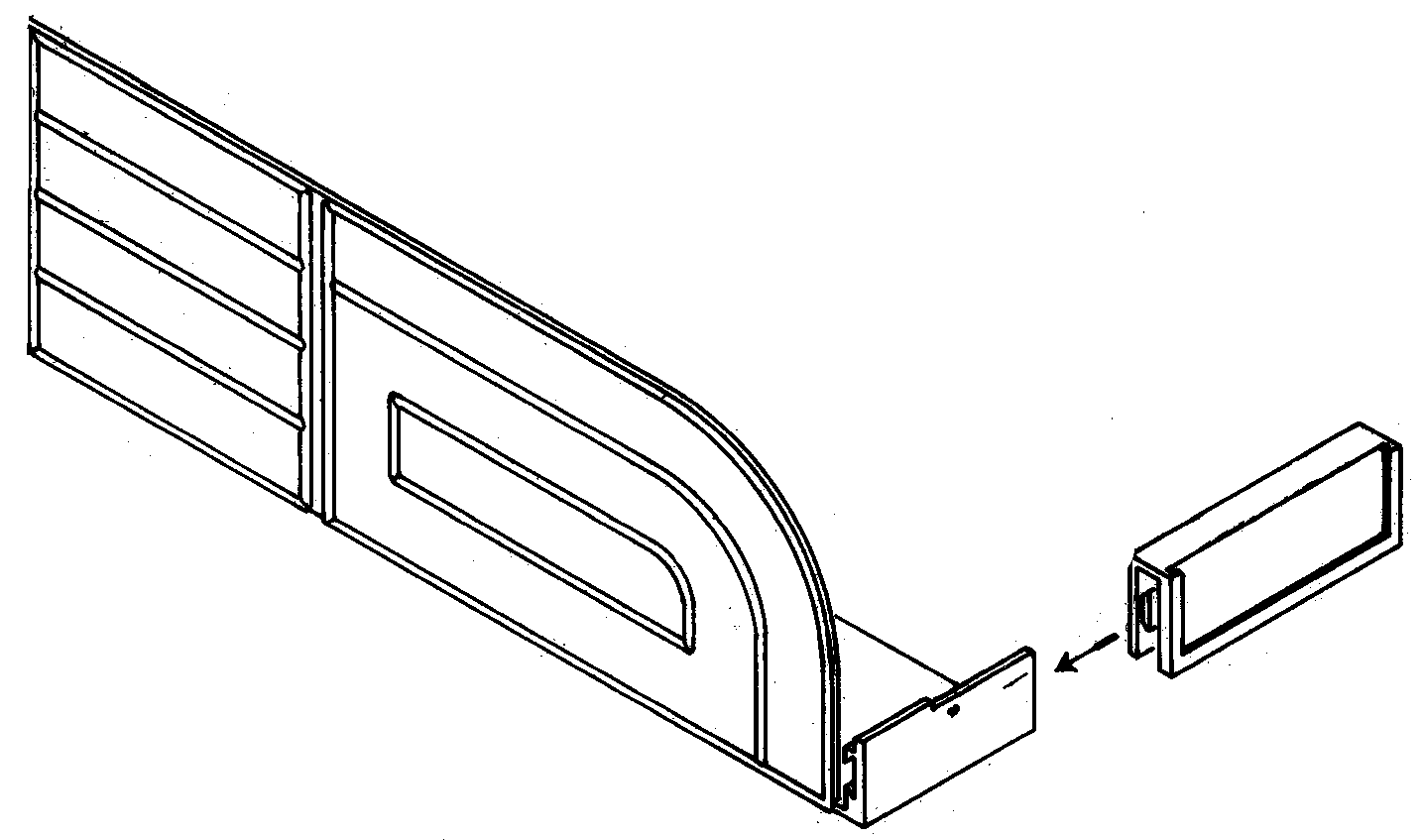

Sliding plastic separator for bearings shelf units complete with card holder Measurements in mm. 200x100 h |
||||||||||||||||||||||||||||
S1526.CP |
Sliding separator for bearings shelf units with card holder |
||||||||||||||||||||||||||||
|

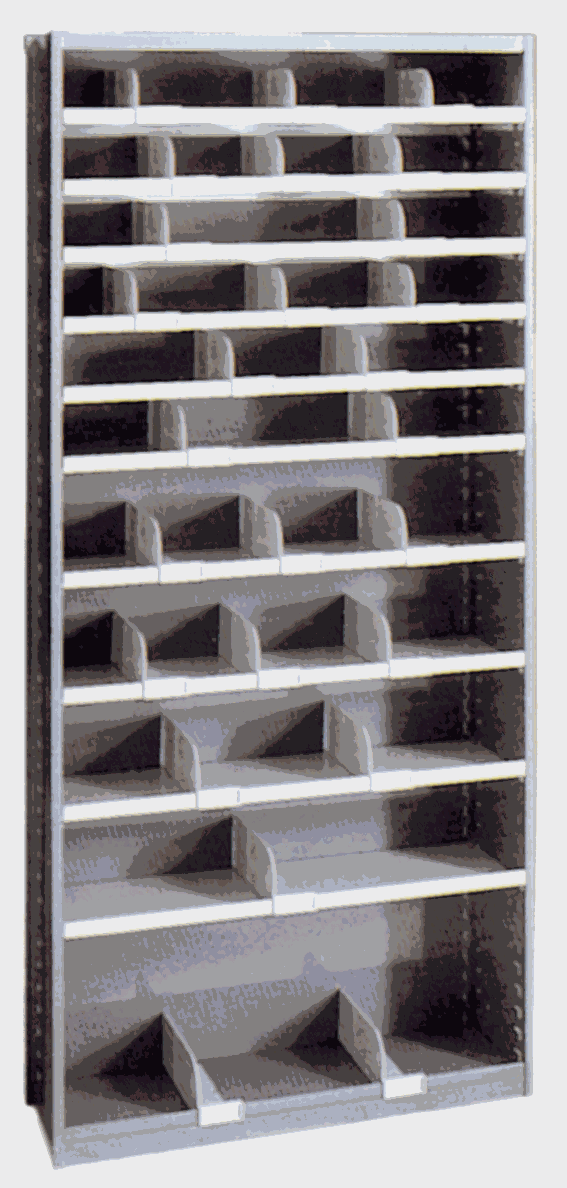

Complete set of spare shelves Measurements in mm. 900 x 300 x 2000 h Available Cod. S1565 pcs. 10 shelves slide out and adjustable Cod. S1170 pcs. 26 sliding divisions mm.300 x 100 h Cod. S1180 pcs. 26 card holder |
||||||||||||||||||||||||||||
S1556.CP |
Complete shelf units |
||||||||||||||||||||||||||||
|

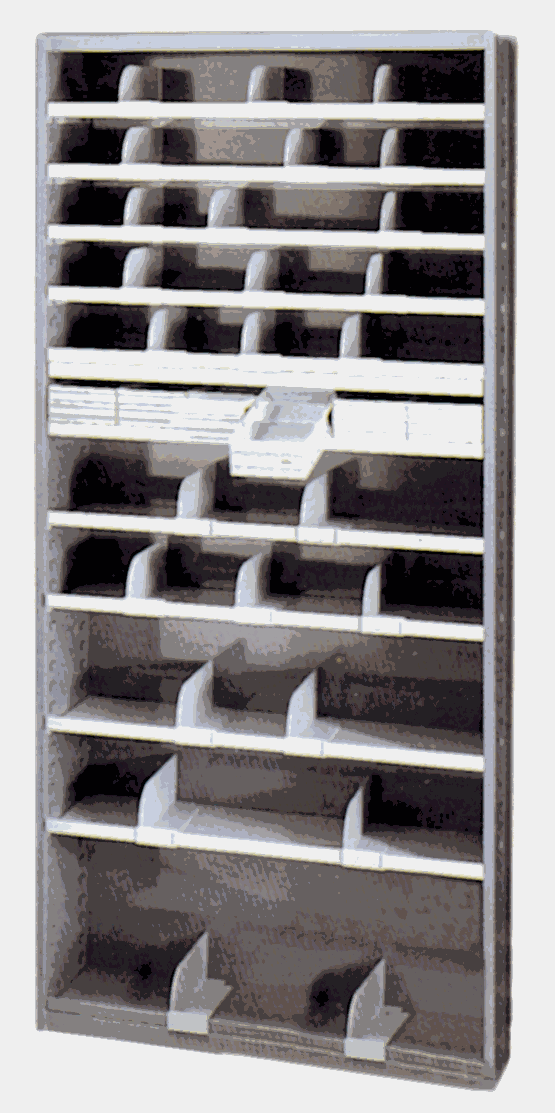

Shelf complete units 6 pigeonholes Measurements in mm.900x300x2000 h
Available Cod. S1565 pcs. 8 shelves slide out and adjustable Cod. S1567 pc. 1 lower pigeonhole shelf Cod. S1567 pc. 1 upper pigeonhole shelf Cod. S1160 pcs. 6 pigeonholes Cod. S1162 pcs. 10 dividers Cod. S1170.CP pcs. 26 sliding dividers mm.300 x 100 h
|
||||||||||||||||||||||||||||
S1556.CPC |
Shelf complete units for 6 pigeonholes |
||||||||||||||||||||||||||||
|

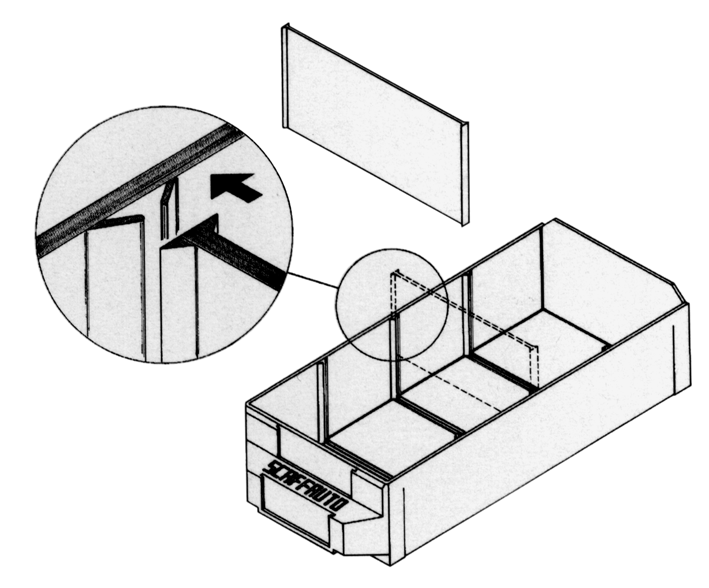

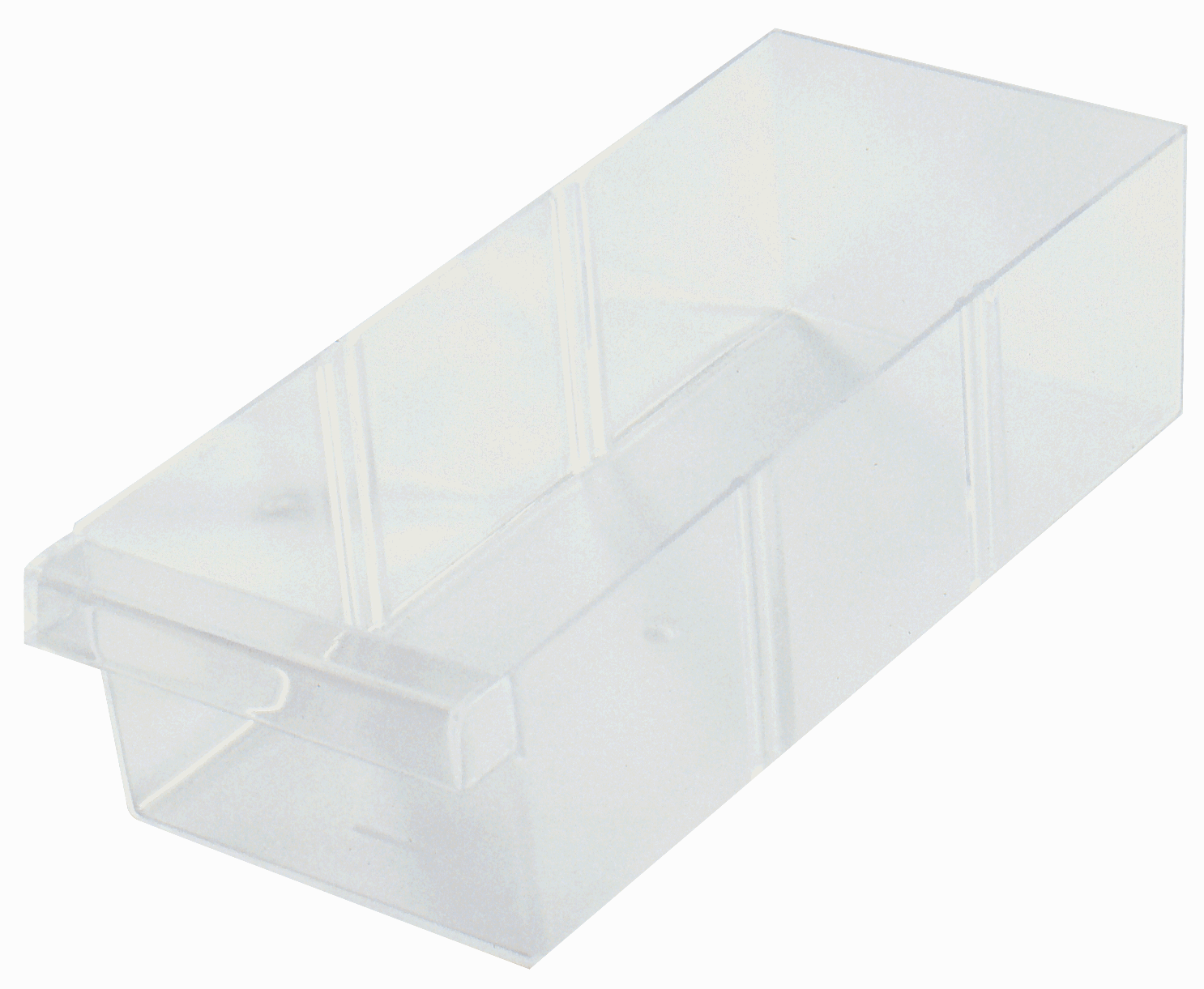

Dividable pigeonhole Measurements in mm. 140 x 285 x 70 h with three grooves that allow for the anchoring of the divider and the reinforcing of the chest |
||||||||||||||||||||||||||||
S1160 |
Dividable pigeonhole |
||||||||||||||||||||||||||||
|
Dividers for pigeonholes cod.1160 |
||||||||||||||||||||||||||||
S1162 |
Dividers for pigeonholes |
||||||||||||||||||||||||||||
|

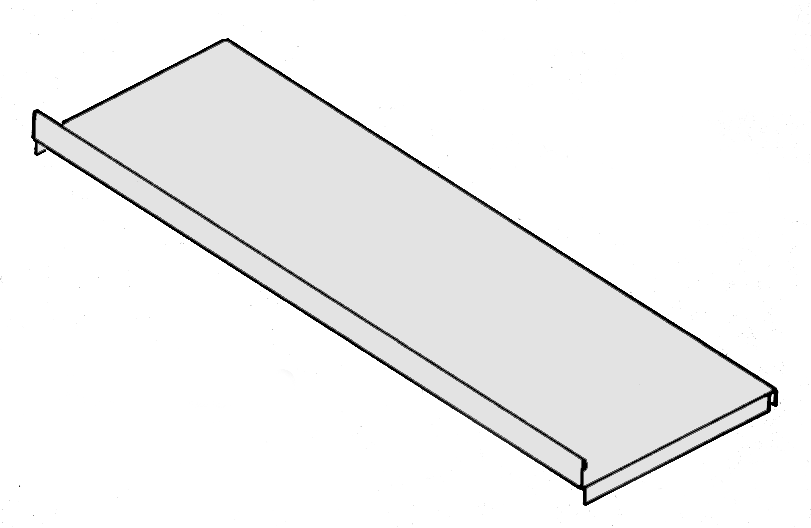

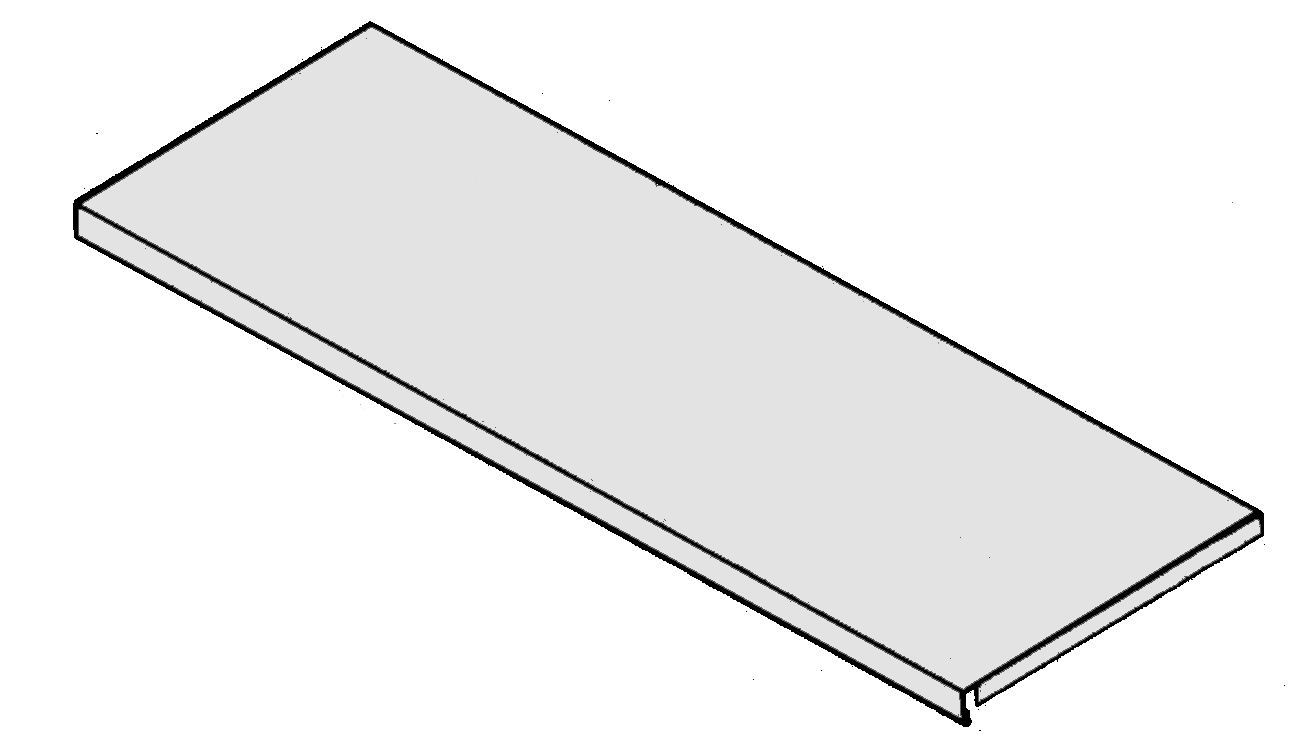

Shelf set spare shelf Measurements in mm. 900 x 300 P |
||||||||||||||||||||||||||||
S1565 |
Shelf set spare shelf |
||||||||||||||||||||||||||||
|
Sliding plastic separator for shelf units. Measurements in mm. 300 x 100 h |
||||||||||||||||||||||||||||
S1170 |
Sliding separator |
||||||||||||||||||||||||||||
|
Universal card holder for separator shelf units |
||||||||||||||||||||||||||||
S1180 |
Card holder for separator |
||||||||||||||||||||||||||||
|

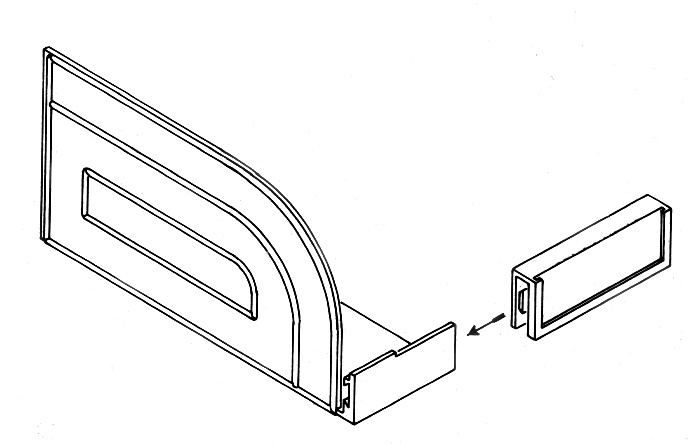

Sliding plastic separator for shelf units. complete with card holder Measurements in mm. 300 x 100 h |
||||||||||||||||||||||||||||
S1170.CP |
Sliding separator complete with card holder |
||||||||||||||||||||||||||||
|
Lower shelf for assembly of pigeonholes on shelf units, Measurements in mm. 900 x 300 P with a lower edge to be assembled to have all the rows needed (example to assemble two rows of pigeonholes in the second function make the first go above and the second below etc. and at the end assemble the upper one above see code no. S1568 because it has a border below and above. |
||||||||||||||||||||||||||||
S1567 |
Lower shelf for the assembly of pigeonholes on shelf units |
||||||||||||||||||||||||||||
|
Upper shelf for assembly of pigeonholes on shelf units Measurements in mm. 900 x 300 P (to assemble on last row) only for the assembly of pigeonholes on shelf units, (lower edge higher ) |
||||||||||||||||||||||||||||
S1568 |
Upper shelf for shelf units |
||||||||||||||||||||||||||||
|

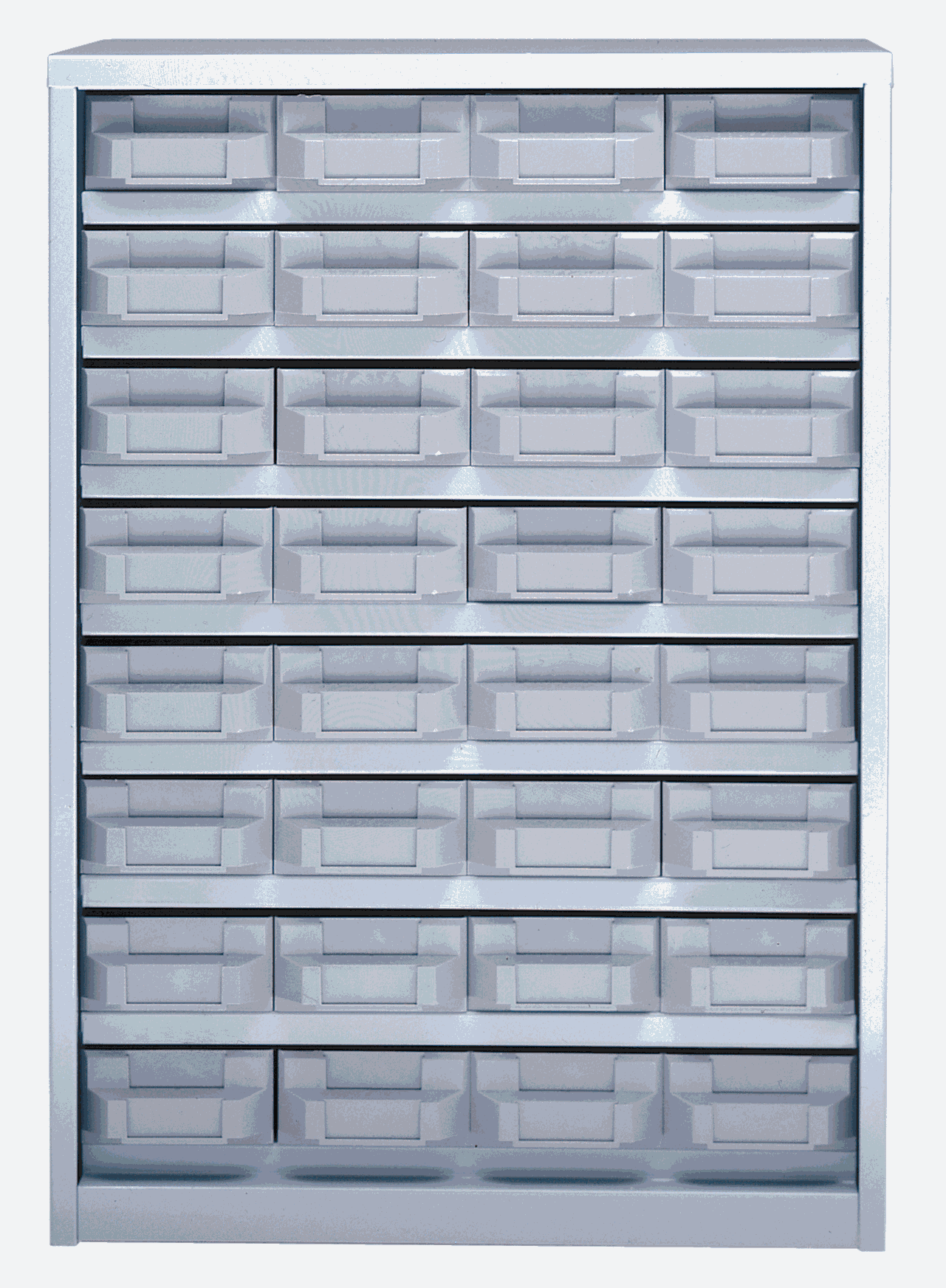

Chest 32 drawers Measurements in mm. 610 x 320 x870 h
Available Cod. S1160 pcs. 32 drawers Cod. S1162 pcs. 60 dividers |
||||||||||||||||||||||||||||
S4306 |
Chest with 32 drawers |
||||||||||||||||||||||||||||
|

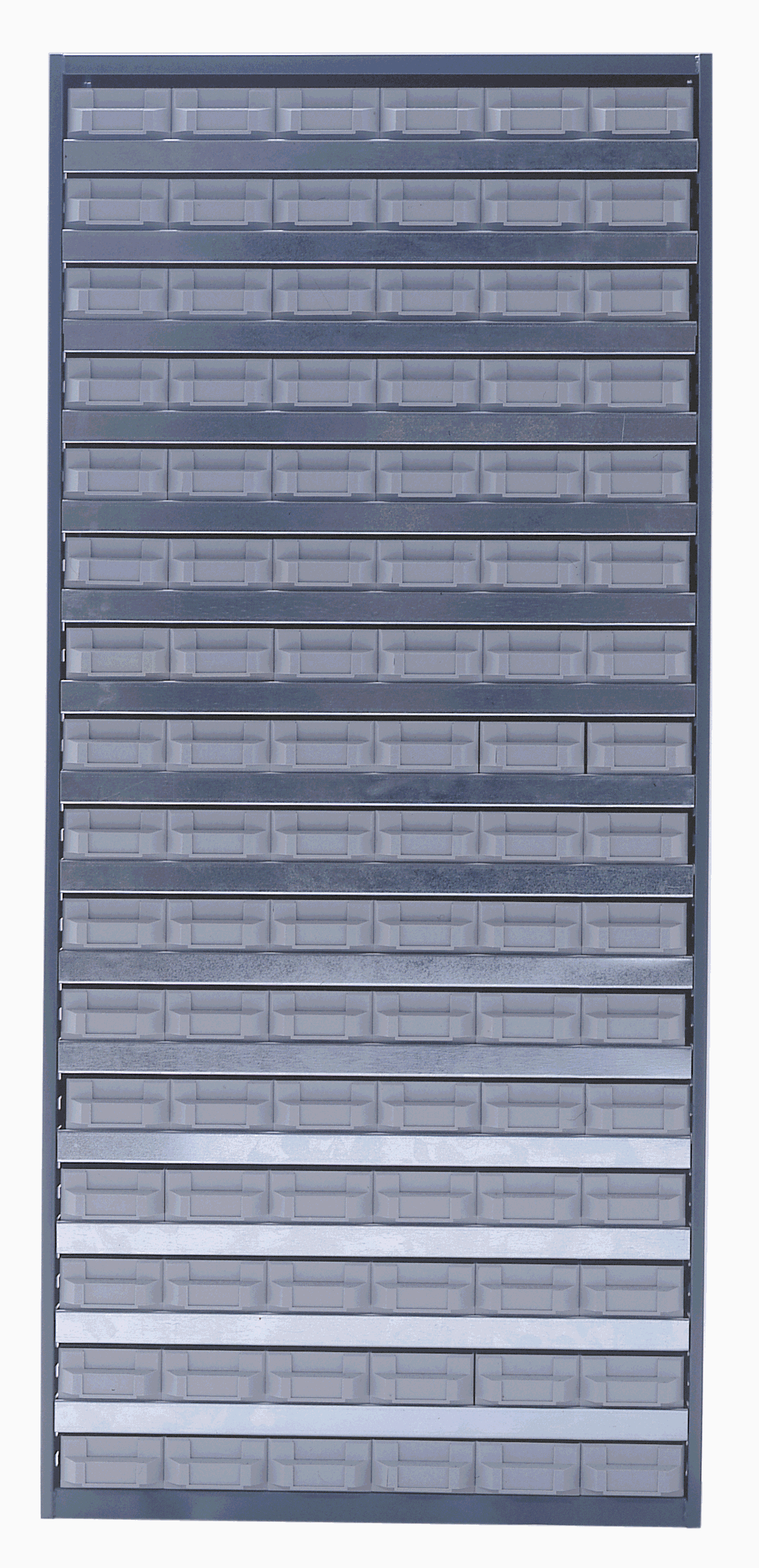

Chest with 96 drawers Measurements in mm. 900 x 300 x 2.000 h
Available Cod. S1160 pcs. 96 drawers Cod. S1162 pcs. 192 drawers
|
||||||||||||||||||||||||||||
S4306.96 |
Chest with 96 drawers |
||||||||||||||||||||||||||||
|
Dividable chest Measurements in mm. 140 x 285 x 70 h with three grooves that allow for the anchoring of the divider and the reinforcing of the chest |
||||||||||||||||||||||||||||
S1160 |
Dividable chest |
||||||||||||||||||||||||||||
|
Chest divider cod.1160 |
||||||||||||||||||||||||||||
S1162 |
Chest divider |
||||||||||||||||||||||||||||
|

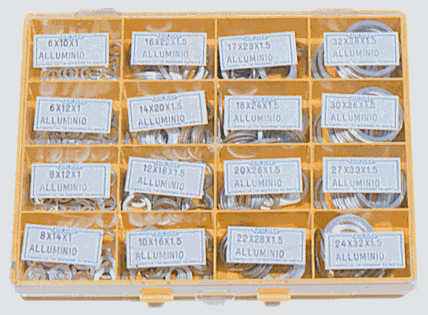

Chest with 16 fixed compartments Chest outside measurements in mm. 243x186xh38 |
||||||||||||||||||||||||||||
SF1 |
Chest terry fix f1 16 compartments yellow |
||||||||||||||||||||||||||||

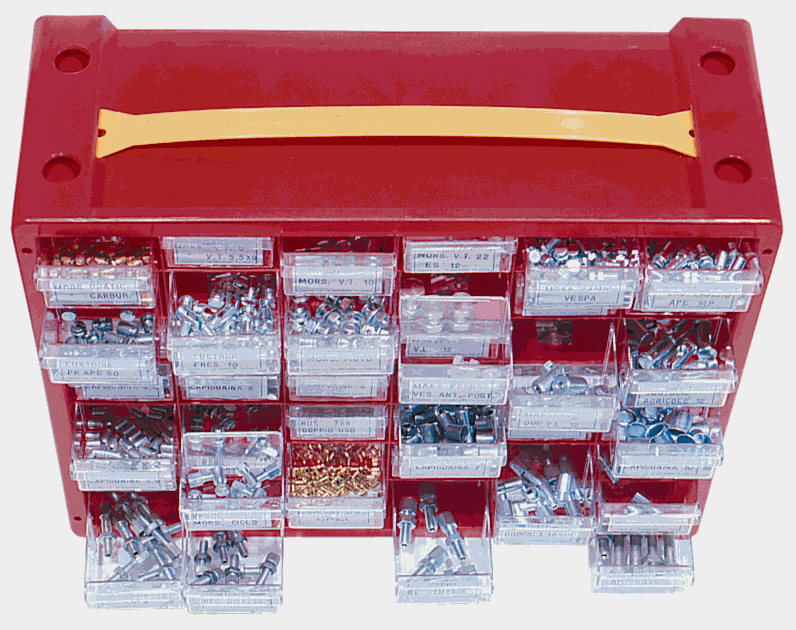

Small parts chest poker type with spare drawers |
|||||||||||||||||||||||||||||

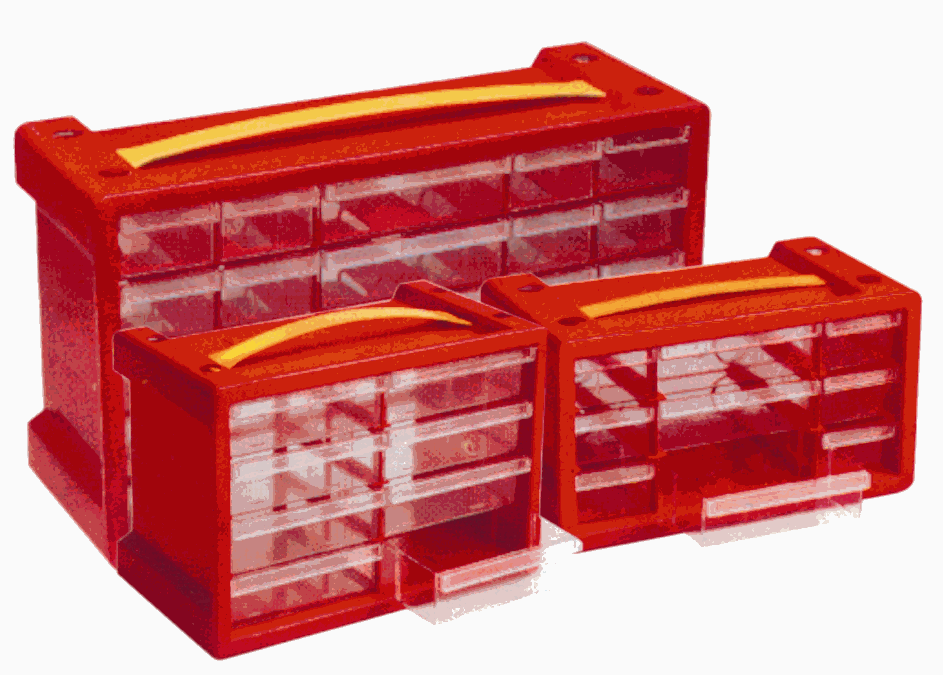

Small parts chests poker type available with 16 - 25 - 42 drawers |
|
||||||||||||||||||||||||||||
|

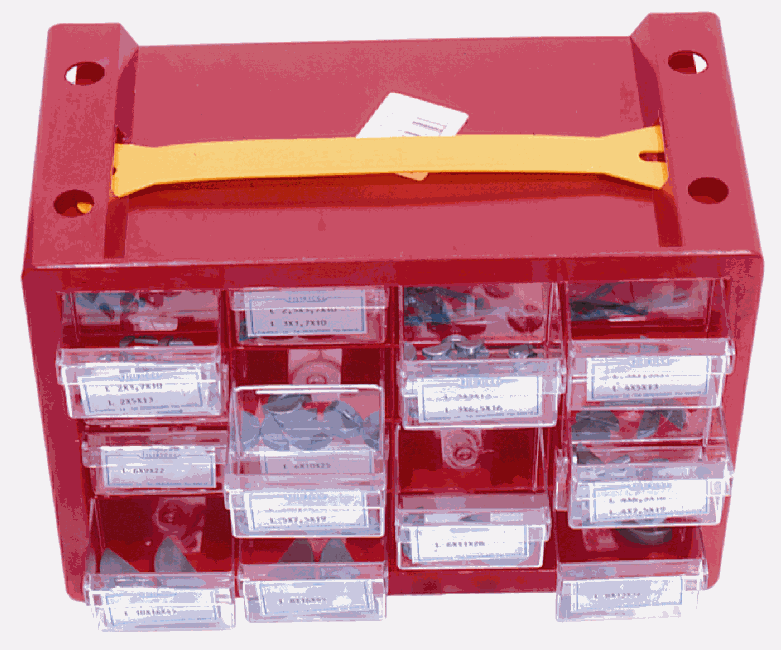

Poker chest of 16 drawers in red plastic. Measurements in mm.279x150xh195 Pcs. 16 transparent drawers dividable in three Drawer measurements mm. 57 x134 x h38. Available Pcs. 10 dividers for drawers. |
||||||||||||||||||||||||||||
SP16 |
Poker chest of drawers 16 in red |
||||||||||||||||||||||||||||
|

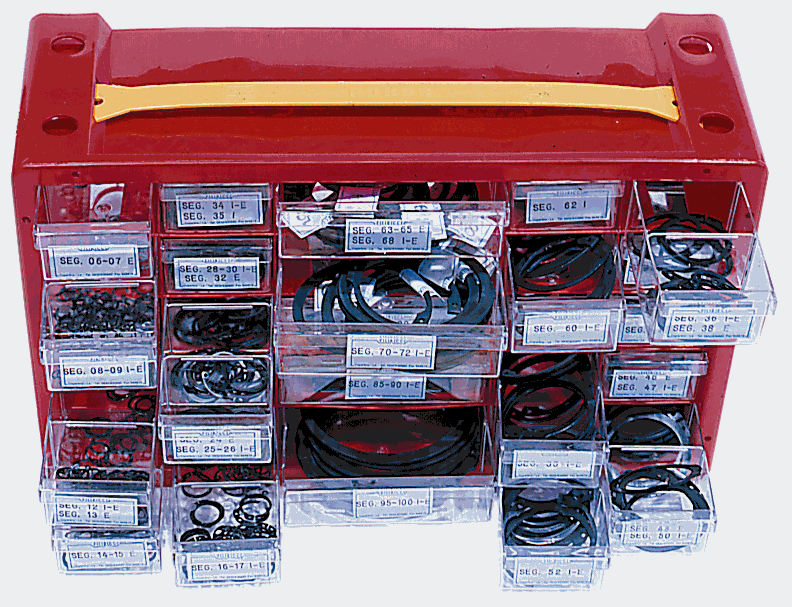

Poker chest of 25 drawers in red plastic. Measurements in mm.470x150xh240 Pcs. 20 transparent drawers divisible in three Size of drawer mm.57x134xh38 Pcs. 5 transparent drawers divisible in three Size of drawer mm.121x134xh38 Available Pcs. 10 small drawer dividers available |
||||||||||||||||||||||||||||
SP25 |
Poker chest of drawers 25 in red |
||||||||||||||||||||||||||||
|
Poker chest of 42 drawers in red plastic. Measurements in mm.408x150xh324 Size of drawer mm.57x134xh38 Pcs. 20 drawer dividers available |
||||||||||||||||||||||||||||
SP42 |
Poker chest of drawers 42 in red |
||||||||||||||||||||||||||||
|

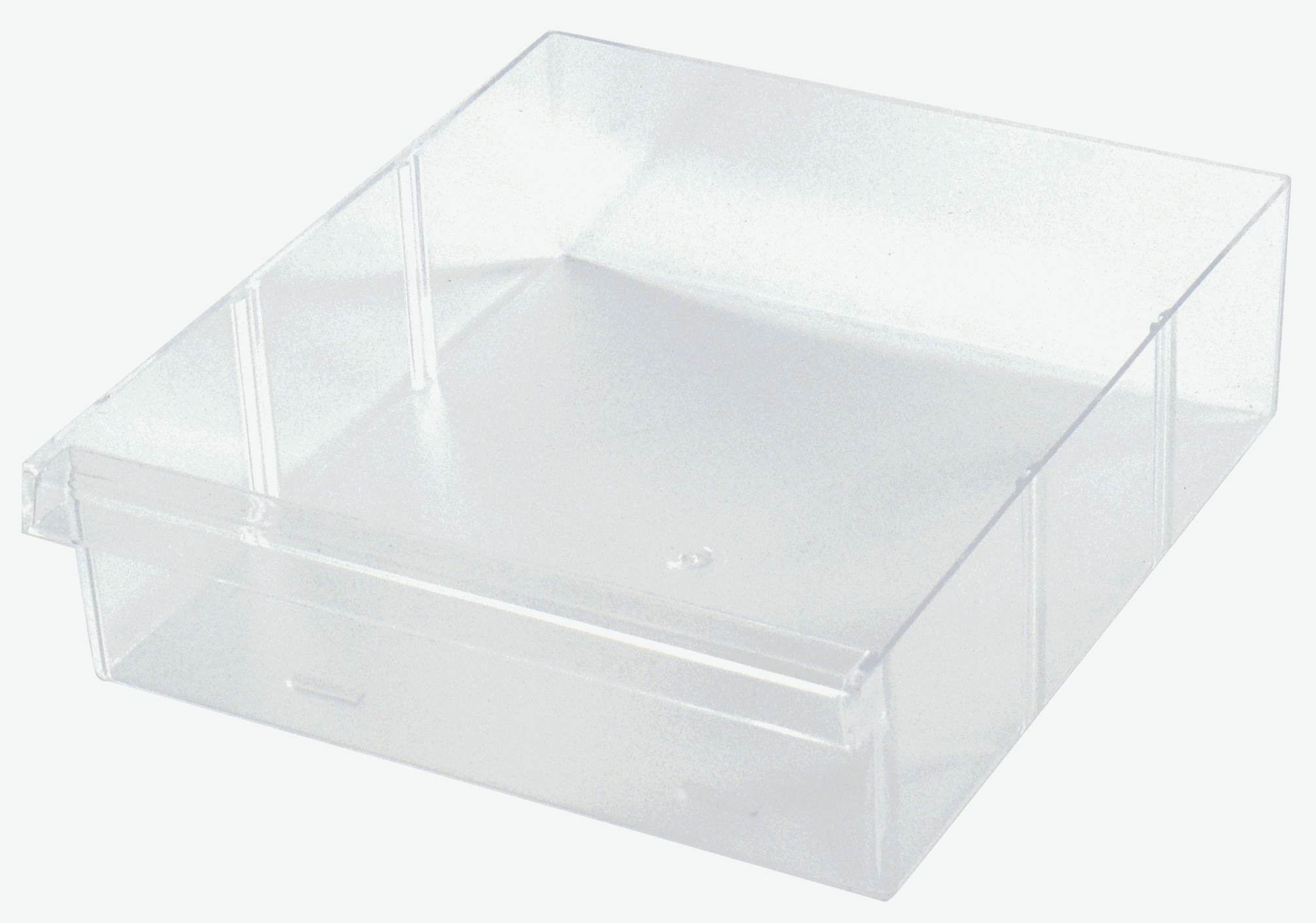

Transparent chest dividable in three parts Size of chest mm.57x134xh38 |
||||||||||||||||||||||||||||
STP42 |
Small transparent chest |
||||||||||||||||||||||||||||
|
Transparent chest dividable in three compartments Size of chest mm.121x134xh38 |
||||||||||||||||||||||||||||
STP25 |
Transparent chest central wide |
||||||||||||||||||||||||||||
|

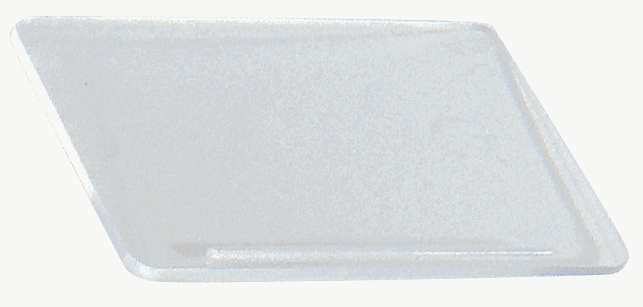

Dividers for chest. Size of chest mm.57x134xh38 |
||||||||||||||||||||||||||||
SP.DIV |
Dividers for transparent chests |
||||||||||||||||||||||||||||
Key hanger and hook panels
|
|||||||||||||||||||||||||||||
|

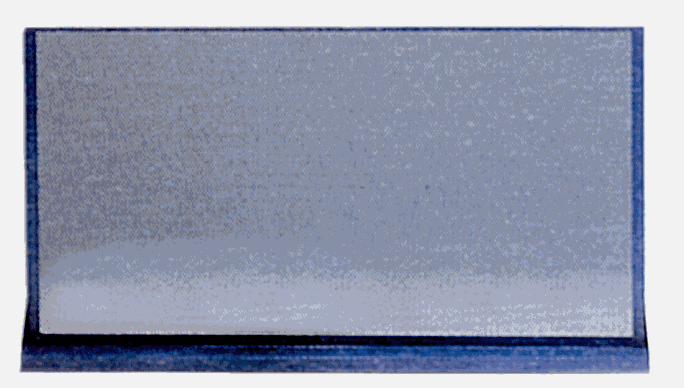

Key hanger panel. Measurements in mm. 1000 x 800 Measurements in mm. 1500 x 800 Measurements in mm. 2000 x 800 |
||||||||||||||||||||||||||||
S4550 |
Key hanger panel mm.1000x800 |
||||||||||||||||||||||||||||
S4552 |
Key hanger panel mm.1500x800 |
||||||||||||||||||||||||||||
S4555 |
Key hanger panel mm.2000x800 |
||||||||||||||||||||||||||||
|
Key hanger panel with shelf Measurements in mm. 1000 x 800 Measurements in mm. 1500 x 800 Measurements in mm. 2000 x 800 |
||||||||||||||||||||||||||||
S4560 |
Key hanger panel with shelf mm.1000x800 |
||||||||||||||||||||||||||||
S4562 |
Key hanger panel with shelf mm.1500x800 |
||||||||||||||||||||||||||||
S4564 |
Key hanger panel with shelf mm.2000x800 |
||||||||||||||||||||||||||||
|
|
|
Zinc plated hooks for key holders. |
||||||||||||||||||||||||||
S1330 |
Hook with screw nut and washer mm.55 |
||||||||||||||||||||||||||||
S1332 |
Adhesive hook da mm.100 |
||||||||||||||||||||||||||||
S4570 |
Adhesive hook da mm.30 |
||||||||||||||||||||||||||||

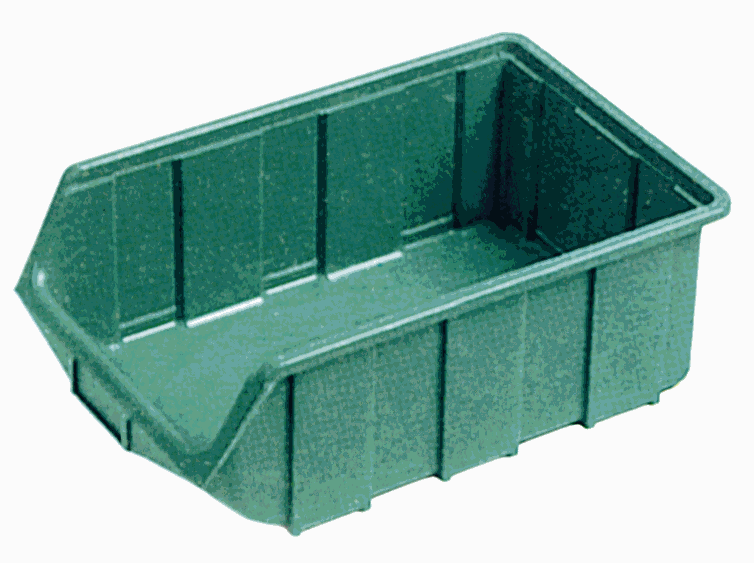

Plastic containers Light type |
|||||||||||||||||||||||||||||
|
Containers in light type plastic actual sizes of types available 1° H 53 L 109 P 100 2° H 64 L 113 P 127 3° H 76 L 111 P 168 4° H 129 L 160 P 250 5° H 167 L 344 P 335 |
||||||||||||||||||||||||||||
SEB.1 |
Containers in light type plastic H 53 L 109 P 100 |
||||||||||||||||||||||||||||
SEB.2 |
Containers in light type plastic H 64 L 113 P 127 |
||||||||||||||||||||||||||||
SEB.3 |
Containers in light type plastic H 76 L 111 P 168 |
||||||||||||||||||||||||||||
SEB.4 |
Containers in light type plastic H 129 L 160 P 250 |
||||||||||||||||||||||||||||
SEB.5 |
Containers in light type plastic H 167 L 344 P 335 |
||||||||||||||||||||||||||||

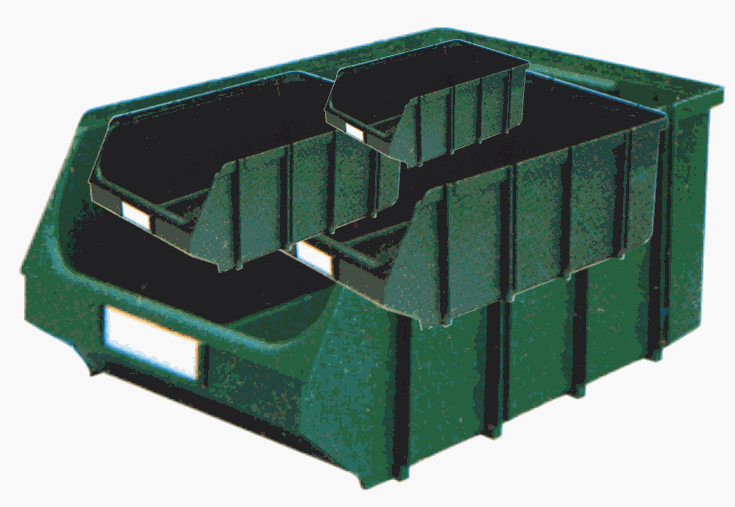

Plastic containers Heavy type |
|||||||||||||||||||||||||||||
|
Containers in heavy type plastic actual sizes of types available 1° H 76 L 104 P 160 2° H 129 L 147 P 234 3° H 129 L 218 P 234 4° H 167 L 210 P 314 5° H 190 L 307 P 485 6° H 250 L 380 P 600 |
||||||||||||||||||||||||||||
SBB.1 |
Containers in heavy type plastic H 76 L 104 P 160 |
||||||||||||||||||||||||||||
SBB.2 |
Containers in heavy type plastic H 129 L 147 P 234 |
||||||||||||||||||||||||||||
SBB.3 |
Containers in heavy type plastic H 129 L 218 P 234 |
||||||||||||||||||||||||||||
SBB.4 |
Containers in heavy type plastic H 167 L 210 P 314 |
||||||||||||||||||||||||||||
SBB.5 |
Containers in heavy type plastic H 190 L 307 P 485 |
||||||||||||||||||||||||||||
SBB.6 |
Containers in heavy type plastic H 250 L 380 P 600 |
||||||||||||||||||||||||||||

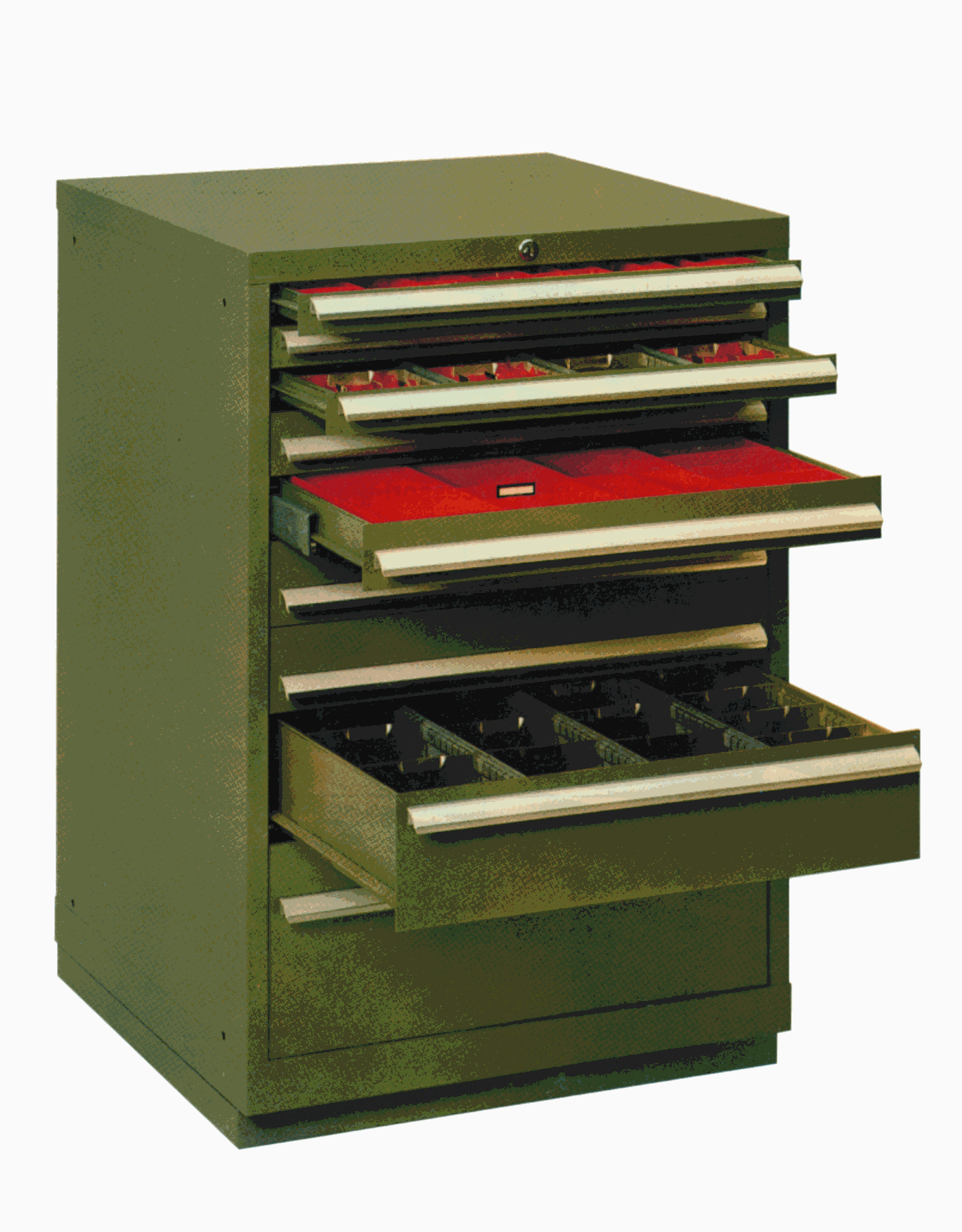

Cupboards for small parts and tools |
|||||||||||||||||||||||||||||
|
Cupboards with chests mounted on guides with bearings,total volume mm. 690 x 690 x h 1000. 1°) 6 pigeonhole type height mm. 150 h. 2°) 9 pigeonhole type height mm. 100 h. 3°) 11 pigeonhole type height of different measurements pcs.3 from mm.50 h. pcs 4 from mm.75 h. pcs.3 from mm.100 h. pcs.1from mm.150 h. Watch out !!! the cupboard is supplied without pigeonhole dividers which will be counted apart |
||||||||||||||||||||||||||||
SAPU.NUD |
Bare cupboard without pigeonholes |
||||||||||||||||||||||||||||
SAPU.CAS.050 |
Tool box for cupboard h 50 mm. |
||||||||||||||||||||||||||||
SAPU.CAS.075 |
Tool box for cupboard h 75 mm. |
||||||||||||||||||||||||||||
SAPU.CAS.100 |
Tool box for cupboard h 100 mm. |
||||||||||||||||||||||||||||
SAPU.CAS.150 |
Tool box for cupboard h 150mm. |
||||||||||||||||||||||||||||
SAPU.CP06 |
Cupboard with 6 pigeonholes(without dividers) |
||||||||||||||||||||||||||||
SAPU.CP09 |
Cupboard with 9 pigeonholes(without dividers) |
||||||||||||||||||||||||||||
SAPU.CP11 |
Cupboard with 11 pigeonholes(without dividers) |
||||||||||||||||||||||||||||
SAPU.D050 |
Bar to divide pigeonhole h 50 mm. |
||||||||||||||||||||||||||||
SAPU.D075 |
Bar to divide pigeonhole h 75 mm. |
||||||||||||||||||||||||||||
SAPU.D100 |
Bar to divide pigeonhole h 100 mm. |
||||||||||||||||||||||||||||
SAPU.D150 |
Bar to divide pigeonhole h 150 mm. |
||||||||||||||||||||||||||||
SAPU.DT050 |
Cross divider h 50 mm. price per centimeter |
||||||||||||||||||||||||||||
SAPU.DT075 |
Cross divider h 75 mm. price per centimeter |
||||||||||||||||||||||||||||
SAPU.DT100 |
Cross divider h 100 mm. price per centimeter |
||||||||||||||||||||||||||||
SAPU.DT150 |
Cross divider h 150 mm. price per centimeter |
||||||||||||||||||||||||||||
SAPU.C26G |
Dividing box for drawers mm. 150 x 50 h26 |
||||||||||||||||||||||||||||
SAPU.C26M |
Dividing box for drawers mm. 150 x 75 h26 |
||||||||||||||||||||||||||||
SAPU.C26P |
Dividing box for drawers mm. 75 x 75 h26 |
||||||||||||||||||||||||||||
SAPU.C52G |
Dividing box for drawers mm. 150 x 150 h52 |
||||||||||||||||||||||||||||
SAPU.C52M |
Dividing box for drawers mm. 150 x 75 h52 |
||||||||||||||||||||||||||||
SAPU.C52P |
Dividing box for drawers mm. 75 x 75 h52 |
||||||||||||||||||||||||||||
SAPU.C71G |
Dividing box for drawers mm. 150 x 150 h71 |
||||||||||||||||||||||||||||
SAPU.C71M |
Dividing box for drawers mm. 150 x 75 h71 |
||||||||||||||||||||||||||||
Shelving with box sides and hooks for rapid assembly |
|||||||||||||||||||||||||||||
|
Shelf unit Standard available size Side heights : mm.1000-2000-2500-3000 with depths on both sides mm.300-400-500-600-800 Shelf lengths mm.800-1000-1200 depth of box model chosen Containers divisible in mm.600-800-1000 depth as chosen Production only for large quantity orders Other sizes can be made according to demand |
||||||||||||||||||||||||||||
S3001
|
Side with crosspiece 1000 x 300
|
||||||||||||||||||||||||||||
S3002
|
Side with crosspiece 1000 x 400
|
||||||||||||||||||||||||||||
S3003
|
Side with crosspiece 1000 x 500
|
||||||||||||||||||||||||||||
S3004
|
Side with crosspiece 1000 x 600
|
||||||||||||||||||||||||||||
S3005
|
Side with crosspiece 1000 x 800
|
||||||||||||||||||||||||||||
S3010
|
Side with crosspiece 2000 x 300
|
||||||||||||||||||||||||||||
S3011
|
Side with crosspiece 2000 x 400
|
||||||||||||||||||||||||||||
S3012
|
Side with crosspiece 2000 x 500
|
||||||||||||||||||||||||||||
S3013
|
Side with crosspiece 2000 x 600
|
||||||||||||||||||||||||||||
S3015
|
Side with crosspiece 2000 x 800
|
||||||||||||||||||||||||||||
S3018
|
Side with crosspiece 2500 x 300
|
||||||||||||||||||||||||||||
S3019
|
Side with crosspiece 2500 x 400
|
||||||||||||||||||||||||||||
S3020
|
Side with crosspiece 2500 x 500
|
||||||||||||||||||||||||||||
S3021
|
Side with crosspiece 2500 x 600
|
||||||||||||||||||||||||||||
S3025
|
Side with crosspiece 2500 x 800
|
||||||||||||||||||||||||||||
S3030
|
Side with crosspiece 3000 x 300
|
||||||||||||||||||||||||||||
S3031
|
Side with crosspiece 3000 x 400
|
||||||||||||||||||||||||||||
S3032
|
Side with crosspiece 3000 x 500
|
||||||||||||||||||||||||||||
S3033
|
Side with crosspiece 3000 x 600
|
||||||||||||||||||||||||||||
S3035
|
Side with crosspiece 3000 x 800
|
||||||||||||||||||||||||||||
S3050
|
Shelf 800 x 300
|
||||||||||||||||||||||||||||
S3051
|
Shelf 800 x 400
|
||||||||||||||||||||||||||||
S3052
|
Shelf 800 x 500 with 1 reinforcement
|
||||||||||||||||||||||||||||
S3053
|
Shelf 800 x 600 with 1 reinforcement
|
||||||||||||||||||||||||||||
S3057
|
Shelf 1000 x 300
|
||||||||||||||||||||||||||||
S3058
|
Shelf 1000 x 400 with 1 reinforcement
|
||||||||||||||||||||||||||||
S3060
|
Shelf 1000 x 500 with 1 reinforcement
|
||||||||||||||||||||||||||||
S3061
|
Shelf 1000 x 600 with 2 reinforcements
|
||||||||||||||||||||||||||||
S3065
|
Shelf 1000 x 800 with 2 reinforcements
|
||||||||||||||||||||||||||||
S3080
|
Shelf 1200 x 300
|
||||||||||||||||||||||||||||
S3081
|
Shelf 1200 x 400 with 1 reinforcement
|
||||||||||||||||||||||||||||
S3082
|
Shelf 1200 x 500 with 1 reinforcement
|
||||||||||||||||||||||||||||
S3083
|
Shelf 1200 x 600 with 2 reinforcements
|
||||||||||||||||||||||||||||
S3085
|
Shelf 1200 x 800 with 3 reinforcements
|
||||||||||||||||||||||||||||
S3100
|
Container with dividers 800 x 300
|
||||||||||||||||||||||||||||
S3101
|
Container with dividers 800 x 400 with
1 reinforcement
|
||||||||||||||||||||||||||||
S3102
|
Container with dividers 800 x 500 with
1 reinforcement
|
||||||||||||||||||||||||||||
S3103
|
Container with dividers 1000 x 300
|
||||||||||||||||||||||||||||
S3104
|
Container with dividers 1000 x 400 with
1 reinforcement
|
||||||||||||||||||||||||||||
S3105
|
Container with dividers 1000 x 500 with
1 reinforcement
|
||||||||||||||||||||||||||||
S3110
|
Shelf dividers 300 x 150h
|
||||||||||||||||||||||||||||
S3111
|
Shelf dividers 400 x 150h
|
||||||||||||||||||||||||||||
S3112
|
Shelf dividers 500 x 150h
|
||||||||||||||||||||||||||||
S3113
|
Shelf dividers 600 x 150h
|
||||||||||||||||||||||||||||
S3115
|
Shelf dividers 300 x 200h
|
||||||||||||||||||||||||||||
S3116
|
Shelf dividers 400 x 200h
|
||||||||||||||||||||||||||||
S3117
|
Shelf dividers 500 x 200h
|
||||||||||||||||||||||||||||
S3118
|
Shelf dividers 600 x 200h
|
||||||||||||||||||||||||||||
S3125
|
Container dividers from 300
|
||||||||||||||||||||||||||||
S3126
|
Container dividers from 400
|
||||||||||||||||||||||||||||
S3128
|
Container dividers from 500
|
||||||||||||||||||||||||||||
S3145
|
Small stand feet for sides
|
||||||||||||||||||||||||||||
S3158
|
Coupling plate for sides
|
||||||||||||||||||||||||||||
S3185
|
Magnetic cardholder
|
||||||||||||||||||||||||||||
